Crankarm DUB Spindle

Ā£150.00
Length: Standard

šŸ”— Dimension Guide (Crankarms)

šŸ”—Ā Dimension Guide (Cratus Mk2)

DUB spindles for use with:
ā€¢ Previous gen SRAM Crankarms
ā€¢ Current Crankarm collection
ā€¢ Cratus Mk2 crank

They cannot be used with any other crankset, nor can they replace the existing spindles of the named crank models unless paired with our crankarms.

The different spindle lengths affect the Q factor. For detailed information to help you select the optimal spindle for your setup, please visit our Technical Resources page or select the relevant dimension guide link above.

IMPORTANT NOTE.Ā The ultra-narrow spindle was designed purely for the Cratus Mk2 crank and for use on the track only.

Product Description

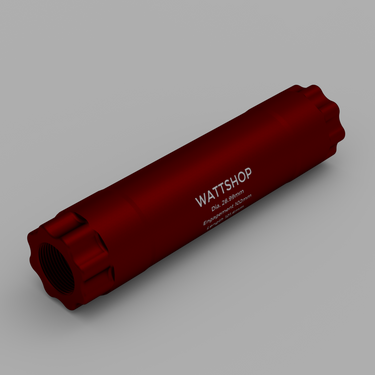

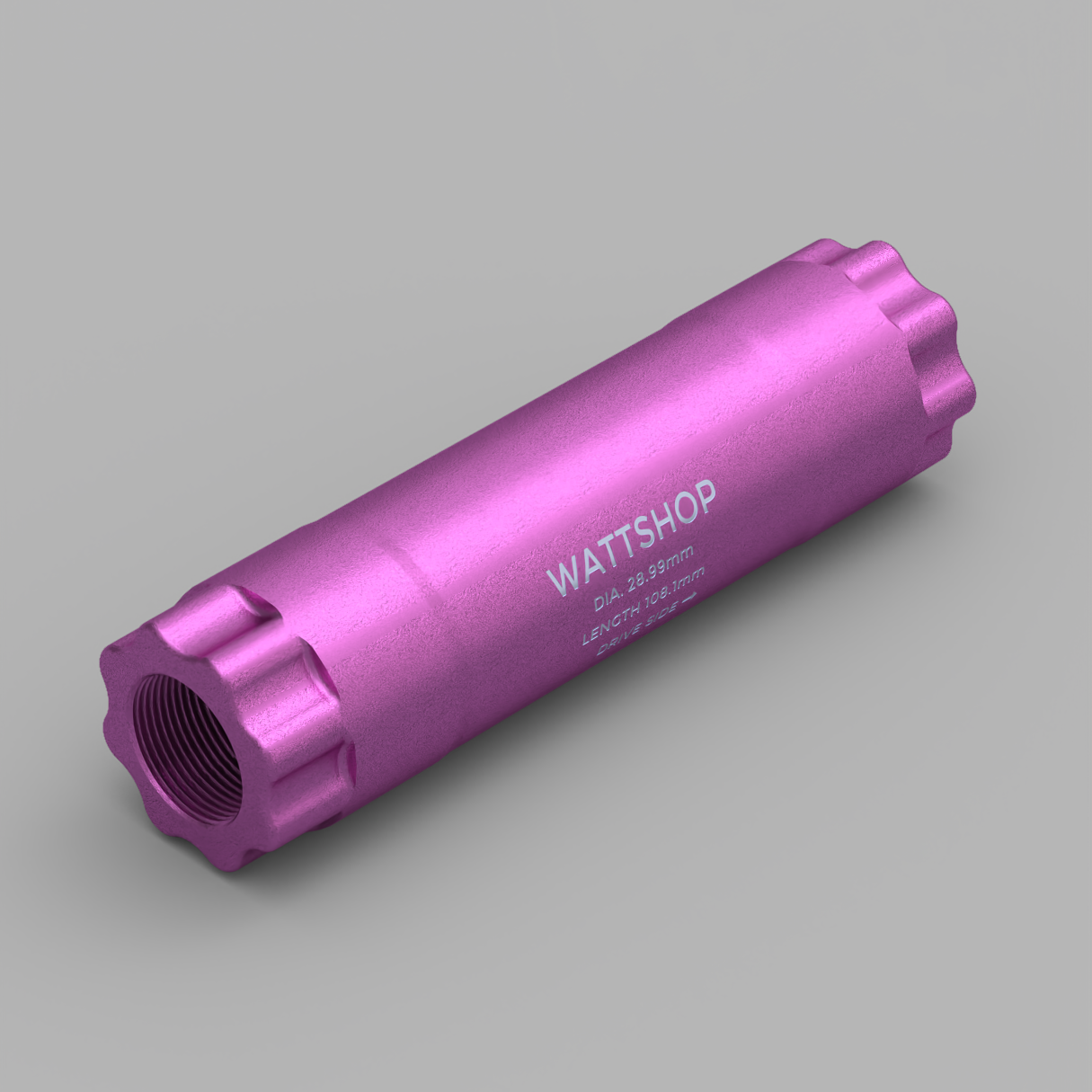

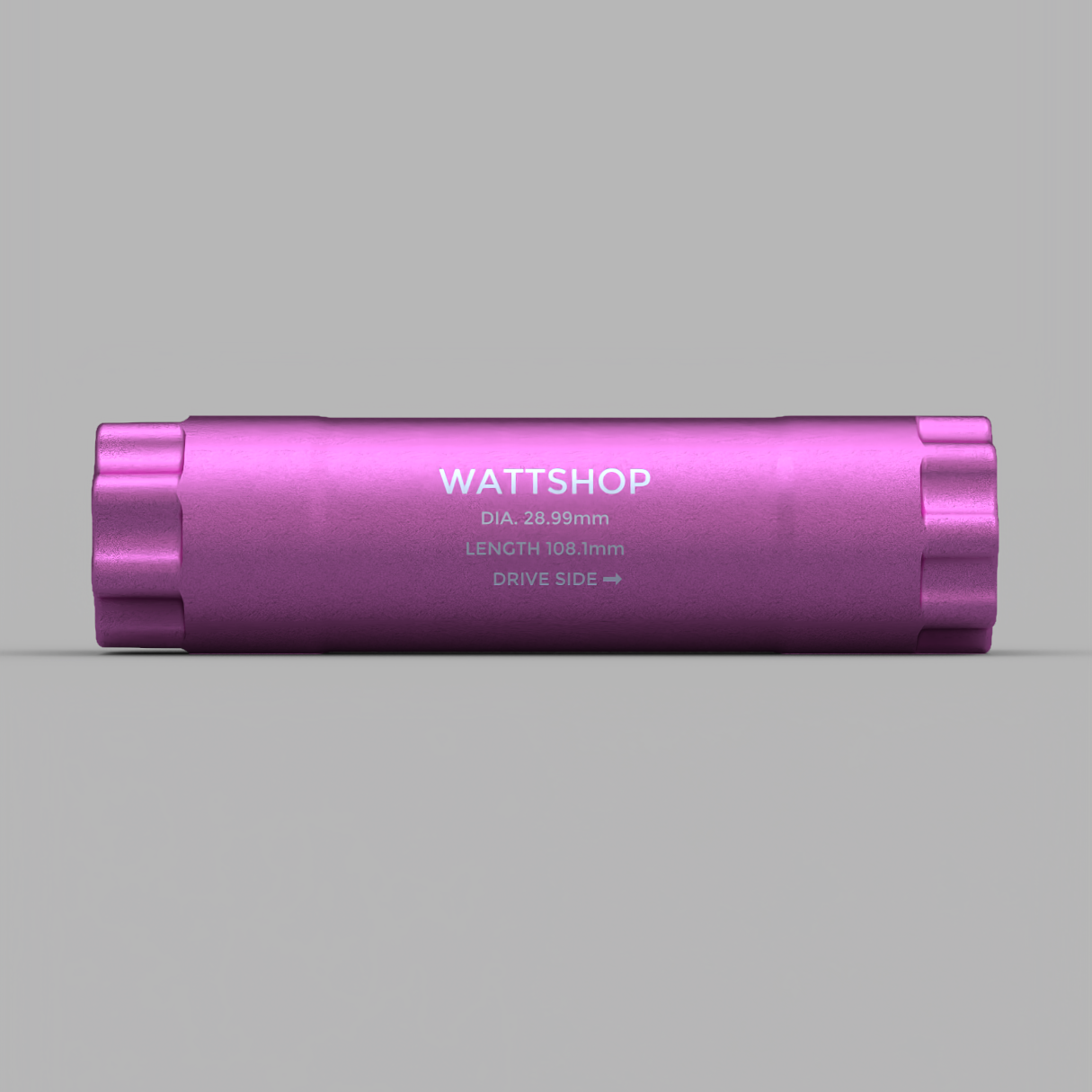

Two DUB (28.99mm) diameter spindle options.

Both spindles are manufactured from 7075-T6 alloy and anodised in different colours for ease of identification.
Standard spindle = red
Narrow spindle = gold

If you intend to purchase the narrow spindle, please check that you have sufficient bottom bracket clearance. You may also need to check chainstay and chainstrike clearance for the different crankarm and spindle combinations. Detailed information to guide your selection is available in our Technical Resources.
Technical Specifications

WEIGHT

DUB Standard spindle = 77g (excluding hardware)
DUB Narrow spindle = 73g (excluding hardware)
DUB Ultra-Narrow spindle = 70g (excluding hardware)
Customisation Options

Spindle spacers, wave washers and spindle-to-spider bolts are not included. We can provide the spindle spacers and wave washers upon request. Please email info@shopforwatts.co.uk.
