Anemoi Extension Mount Plates
Compatible only with our Anemoi aero extension system, the mount plate is an integral part of the system, ensuring the extensions compatibility with various base bars.
If you’ve had a change of position, change of base bar or if you’re swapping your extensions onto a different bike all together you may require a different mount plate to continue using your extensions with your desired reach.

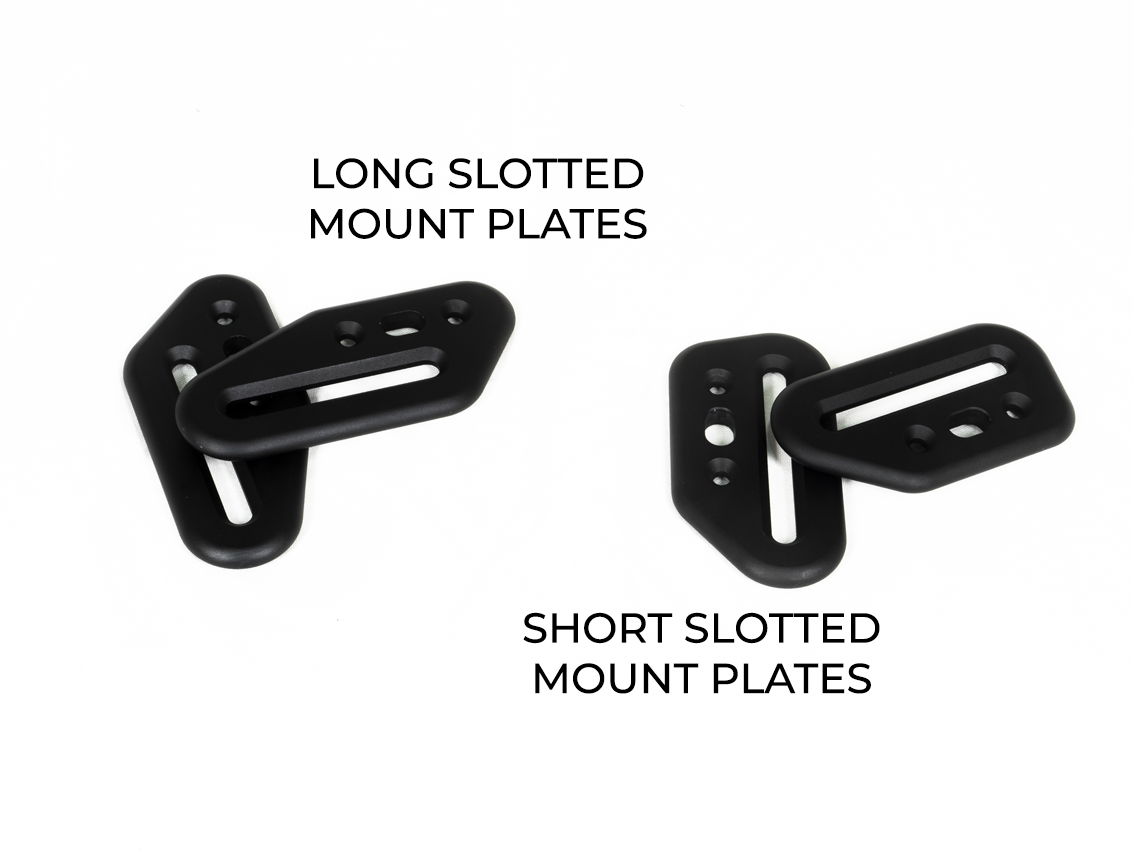

The two plate sizes, short and long offer four different lengths. As the plates are two sided they can be flipped. I.E a "short" reach plate can be flipped and used to achieve a shorter reach. The plates can also be mounted as a narrow or wide mounting depending on your preferred arm rest width.

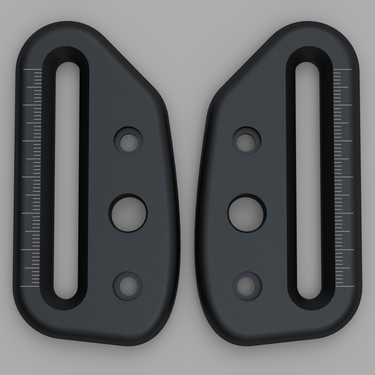

Each plate is machined from aluminium 6082-T6, anodised black and slotted for micro reach adjustment. To use as bolt up system you will need to utilise your M5 or M6 barrel nuts (barrel nuts come supplied with the extension system). Alternatively if you have a bolt down system you can continue to use your current bolts. Additional bolts and/or barrel nuts for riser stack mounting can be supplied upon request, please email email@example.com once you have placed an order.
The fitment range of each plate will be dependent upon your riser stack fore-aft bolt centres. To ensure you purchase the correct plate for your requirement we would recommend inputting your dimensions into the geometry tool, HERE. The output will determine the plate required to match your positional requirement. The dimension guide found HERE will help with understanding the requirement dimensions.
Please note for mono riser systems we supply a bracket rather than a plate. All orders for mono riser brackets are made to order, therefore please allow a 3 week lead time for dispatch. To place an order for a mono bracket please email firstname.lastname@example.org
- Short/Short Flipped: 131g (pair)

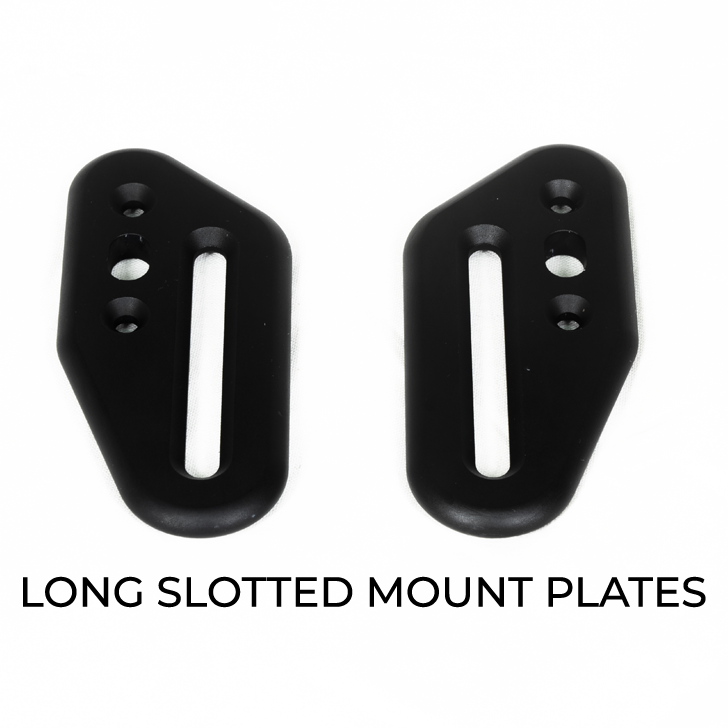

- Long/Long Flipped: 153g (pair)
CUSTOM & MONO RISER SYSTEMS
Custom mount plates can be manufactured at an additional cost. Please get in touch if you wish to explore these options - email@example.com
