Riser Stack Bridge

£80.00

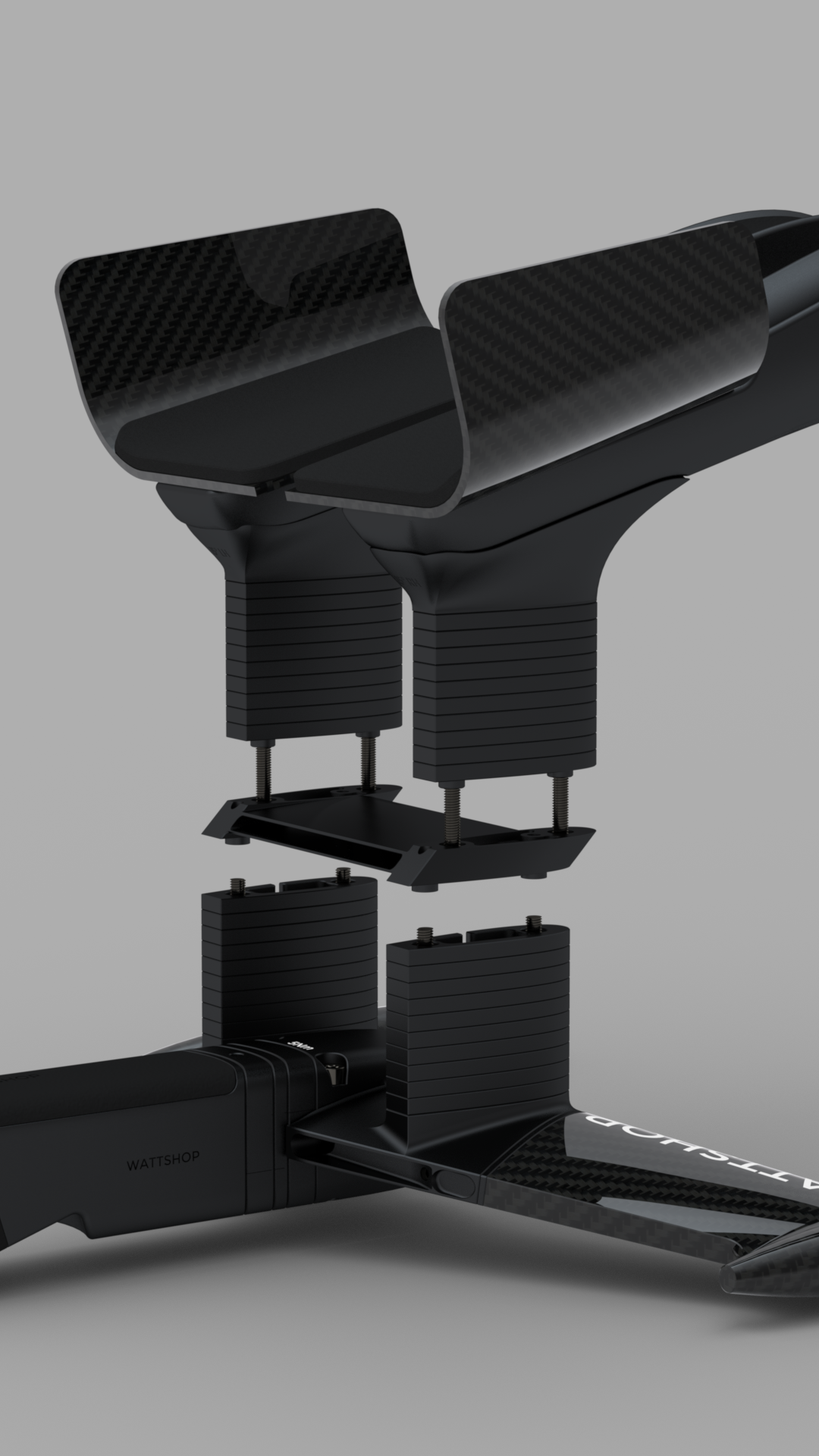

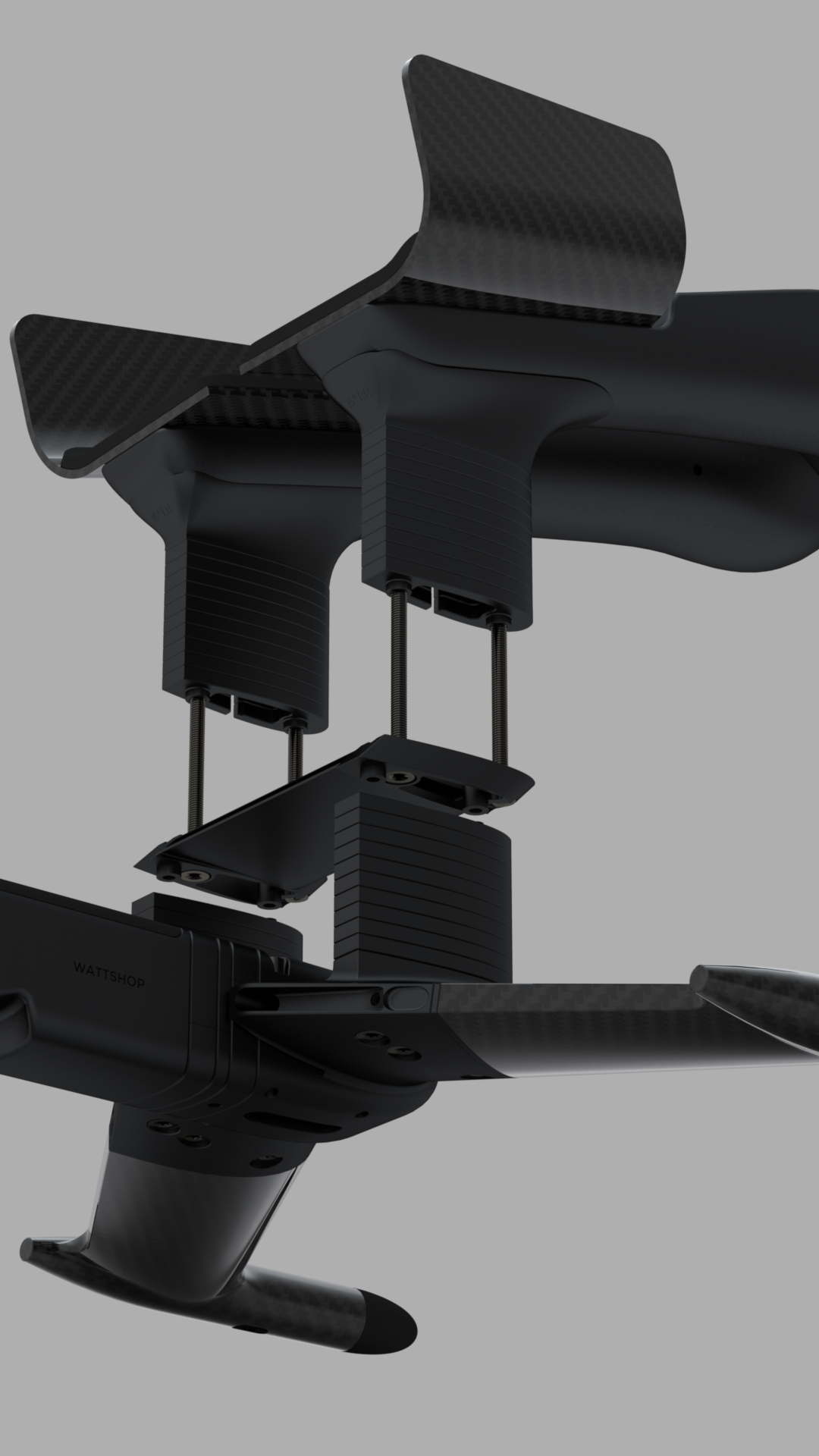

With increased stack height, it is worth considering a bridge to tie together your riser stacks. A bridge between stacks increases stability and, therefore, comfort while in position. While simultaneously also providing a "reset" for your riser stack bolts. No more trying to source a set of compatible long bolts to match your desired stack height, with the bridge installed, you can use two sets of shorter bolts to achieve the same desired stack height. Meaning your stack height isn't limited by the length of the riser stack bolts.

Compatible only with 105mm lateral riser stack centres. Such as the riser stacks of our Anemoi basebar, conversion spacers or mono brackets. The bridge plate is manufactured from 7075-T6 alloy and anodised black.

Product Description

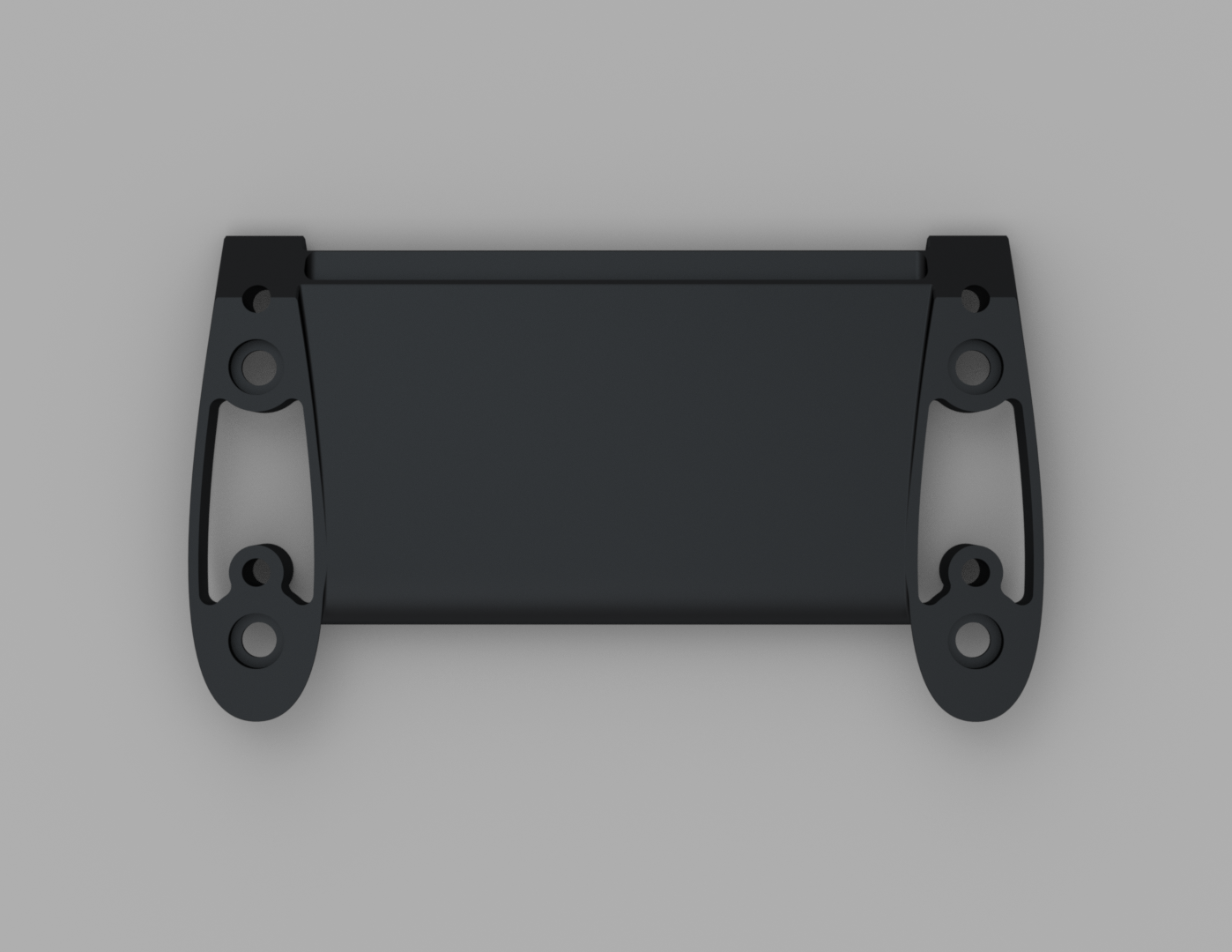

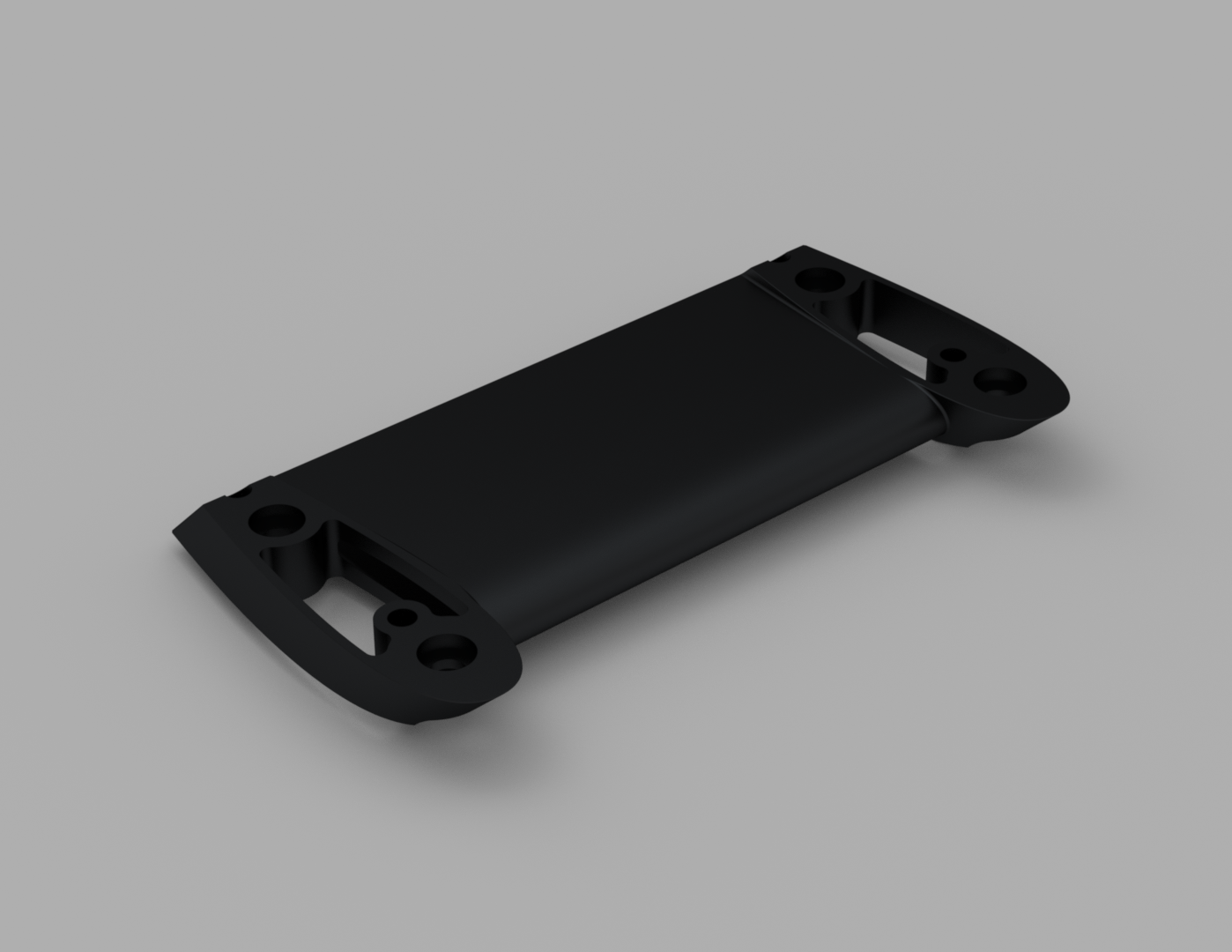

The bridge has interlocking bosses to align the stack and a hollow central section to reduce weight and for ease of cable routing.

The kammtail air foil profile of the bridge matches the profile of the adjustable riser and our riser stack spacers, providing seamless integration between componentry.

Technical Specifications

DIMENSIONS
Stack height: 10mm
Forward offset: 10mm

WEIGHT
Bridge: 82g
